L'association optimale du moteur et de la batterie

When pairing a battery with a motor, the goal is to ensure voltage, current, power, size, and usage scenario compatibility. Here’s a clear and simple guide for matching BG Motor products with battery systems:

Basic Matching Principles

1. Adaptation de la tension

The battery voltage must match the motor’s rated voltage range.

Par exemple :

If using a DC Brushless Motor rated at DC 24V, use a 24V battery pack (e.g. 6S Li-ion battery = 6×4.2V = 25.2V max).

2. Current & Power Matching

The battery discharge current (C-rate × capacity) must exceed the motor's peak current demand.

Exemple :

A 500W motor at 24V needs ~20.8A at peak (500W ÷ 24V). Use a battery capable of at least 25A continuous output for safety margin.

3. Considération de capacité

Choose battery capacité (Ah) à base d' besoins d'exécution.

Exemple :

10Ah battery with a 5A draw gives ~2 hours of runtime.

4. Compatibilité du système de contrôle

Pair motors with suitable conducteurs de moteur or le Edge Controllers that match both batterie et moteur spécifications.

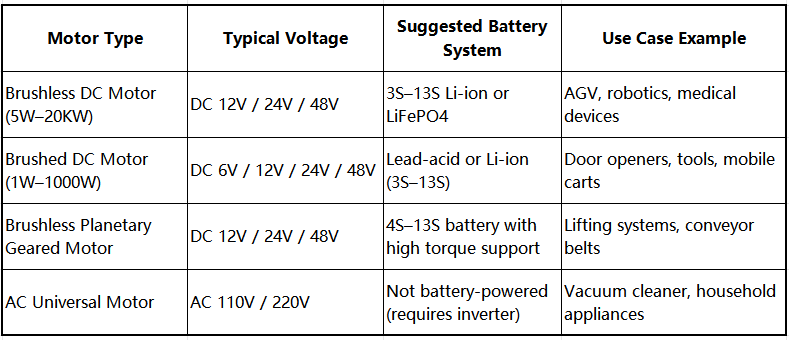

Recommended Combinations for BG Motor Products

Tips for Custom Battery–Motor Integration

Let BG Motor know:

• Your battery type and voltage

• Required torque, speed, and load

• attentes d'exécution

• Space limitations for motor + battery pack

BG Motor provides custom motor winding, shaft and mounting design, and IP rating options for seamless integration with your battery-powered equipment.
